DETAILED INTRODUCTION

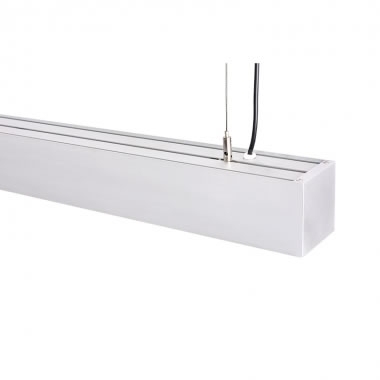

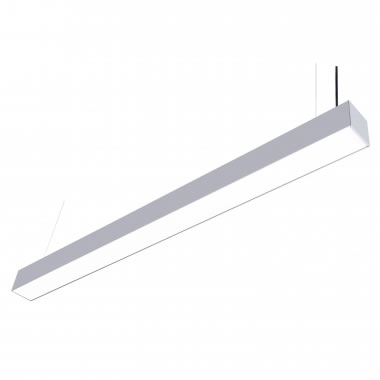

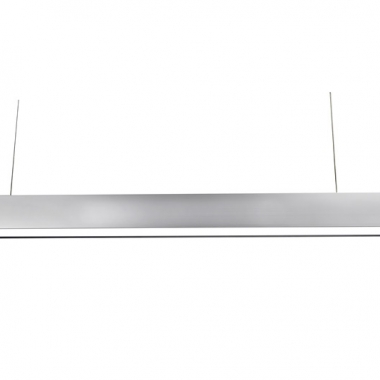

LED Linear light 101*76

Suspended LED panel
Aluminum-Polycarbonate(PC)
2700K/3000K/4000K/6000K
CRI:90 R9>50
Input :AC200-240V/100-277V
Estimated LED Lifespan:50.000hours
Warranty:5years
Serial number:LS10176

  1. 6063-T5 aluminum alloy profile lamp body, anodized or sprayed

  2. Aluminum-Polycarbonate  PC  (Customized PC cover 50m /roll)

  3. OSRAM/TRIDONIC/PHILIPS Constant current LED driver for recessing in

  4. LED  OSRAM,Lifespan:>50.000hours

  5. CIR:>90  R9:>50  CDCM:<3       Alternatives (CIR:>80   CDCM:<5)

  6. Wattage:20w/m  Or  30w/m

  7. Lumen:75lm/w  Or  85lm/w

  8. CCT:3000K,3500K,4000K,6000K   Or  RGBW

  9. Input :AC200-240V/100-277V

  10. beam angle:120°,   LOP:  IP20

  11. Size(mm):  W:101mm,  H:76mm,  L:600/900/1200/1500/1800/2400mm

  12. Continuous,can be customized different lengths

  13. Mounting Accessories (Options):

  14. Suspension wire, bracket, grille bracket, side mounting bracket, recessed bracket

  15. Dimming systems:0-10V,DALI,DT8  2.4G , DMX ,Potentiometer  with PWM

  16. Metal finish:White,Black,Silver

  17. Special aluminum finish:Blue,Green,Red,Yellow,Grain,Bronze,GoldBrass

  18. IES  Make contact:   info@100lida.com
